BP40
Heavy Duty V-Blocks
Designed for horizontal (HMC) and vertical (VMC) CNC machining centers and boring mills.
Material/Finish
- Cast Iron (grade varies by model: FC30, FCD45, FCD60)
- Hardened tool steel inserts in the “V”
Features
- Two-way alignment key ways for easy set up
- Standard Equipment included with every V-Block: Chain clamping system for heavy duty work (A1), Top clamps (A2/A3), studs & nuts included.
We can also custom build V-Blocks to meet your special requirements.
Do you want a BIG one? Call us today!
BP40 Products & Specifications
Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

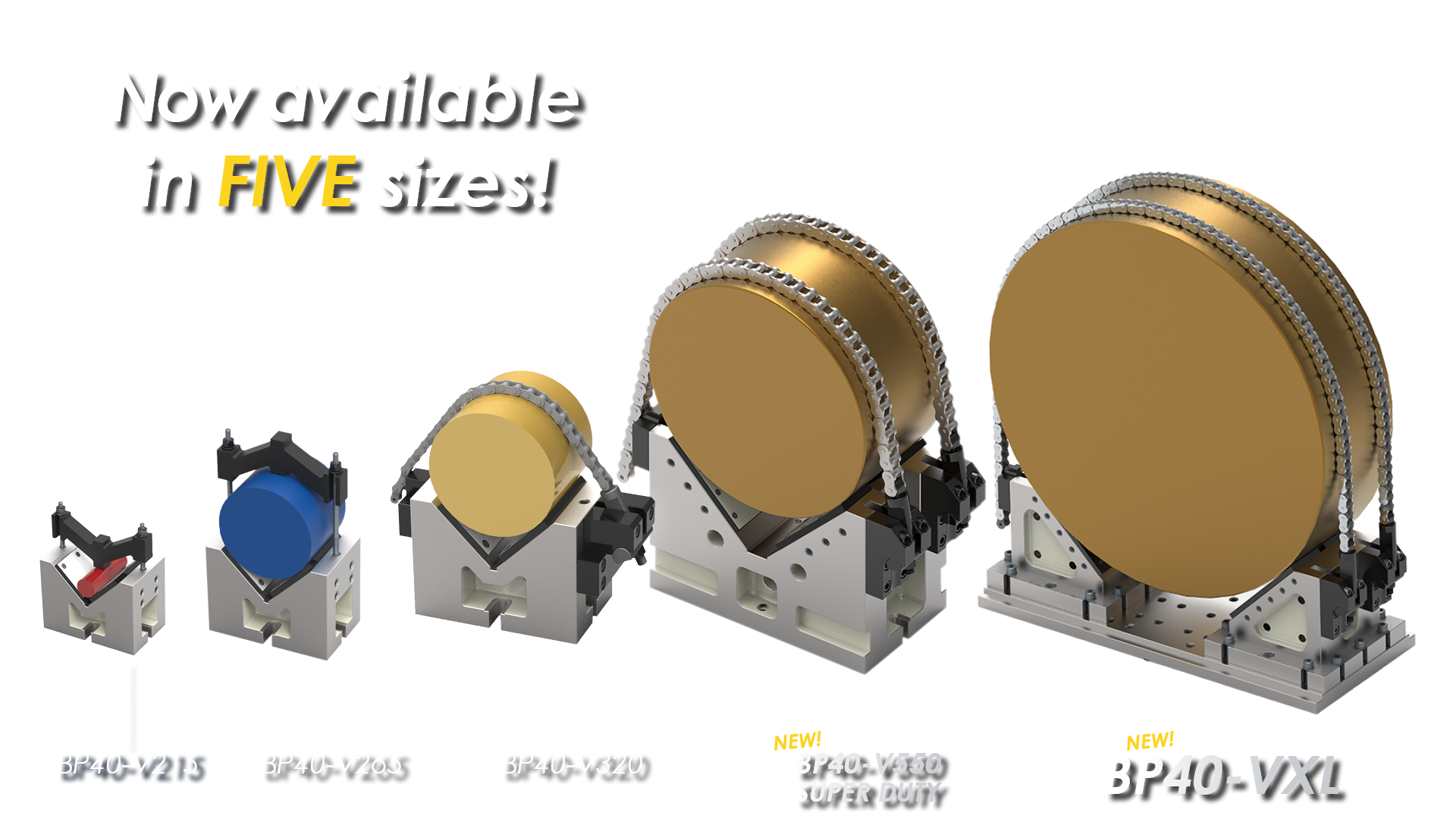

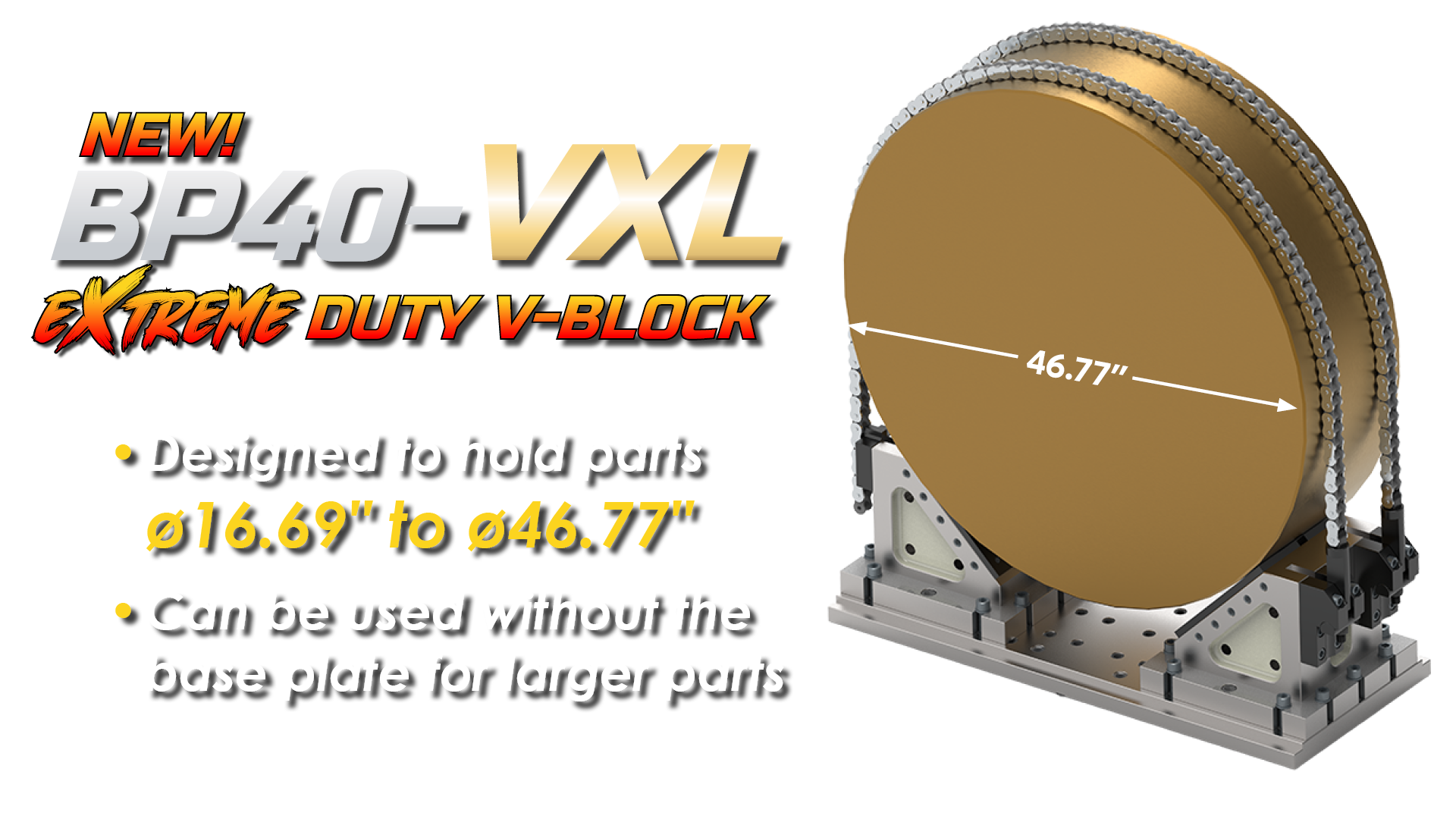

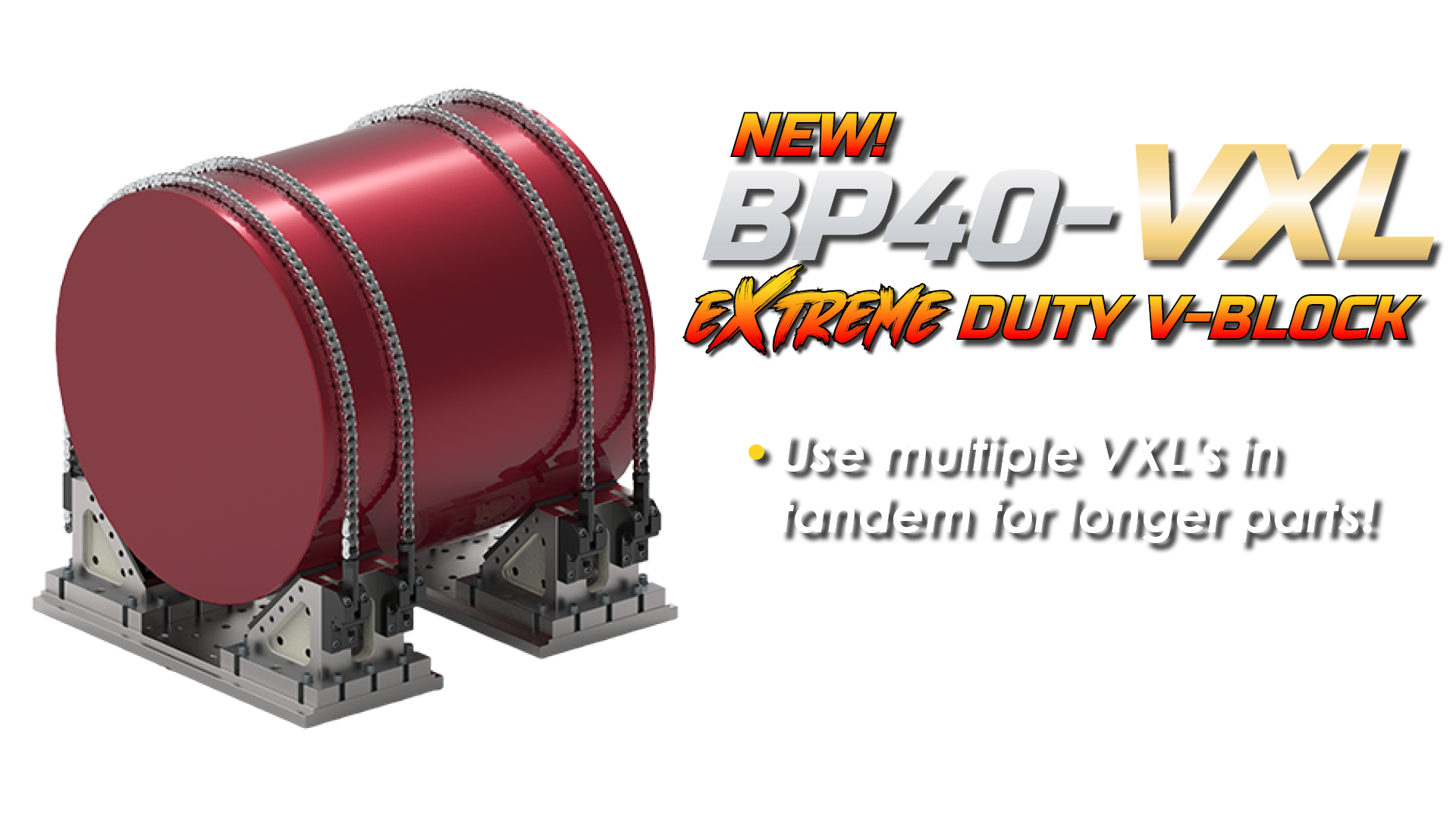

| Item # | Max. Diameter Held (in.) | Min. Diameter Held (in.) | Overall Height (in.) | Overall Length (in.) | Overall Width (in.) | Weight (lbs) | Price | 2D (.PDF) | 3D (.STP) |
|---|---|---|---|---|---|---|---|---|---|
| BP40-V215 | 5.9 | 1.18 | 6.1 | 8.47 | 5.11 | 73 | $2,710.00 |  Download |  Download |
| BP40-V265 | 7.87 | 1.18 | 7.87 | 10.43 | 6.29 | 121 | $3,295.00 | Download | Download |
| BP40-V320 | 9.84 | 1.18 | 9.84 | 12.59 | 7.87 | 192 | $3,990.00 | Download | Download |
| BP40-V550 | 21.65 | 9.84 | 15.75 | 21.65 | 11.81 | 698 | $8,290.00 | Download | Download |
| BP40-VXL | 46.77 | 16.69 | 15.16 | 47.24 | 19.69 | 1250 | Call for Pricing | Download | Download |
