Specifications

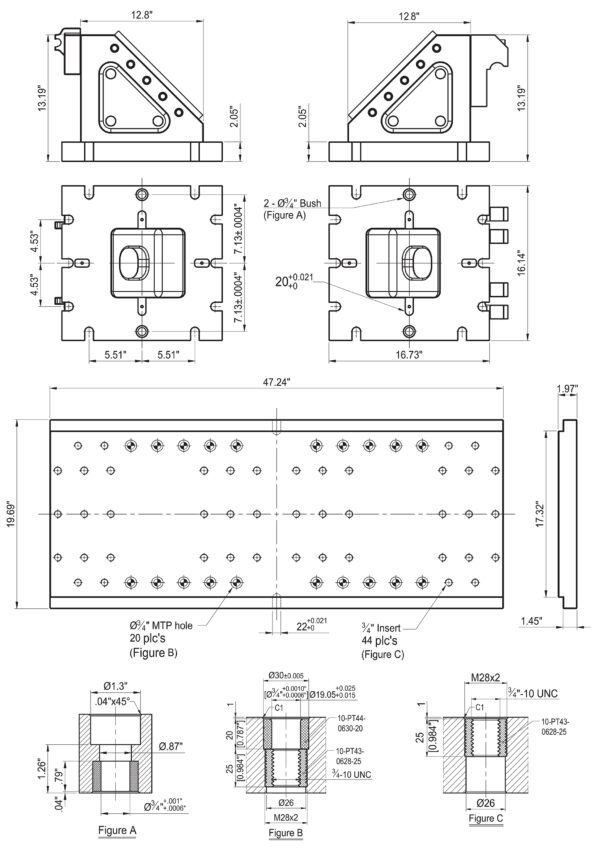

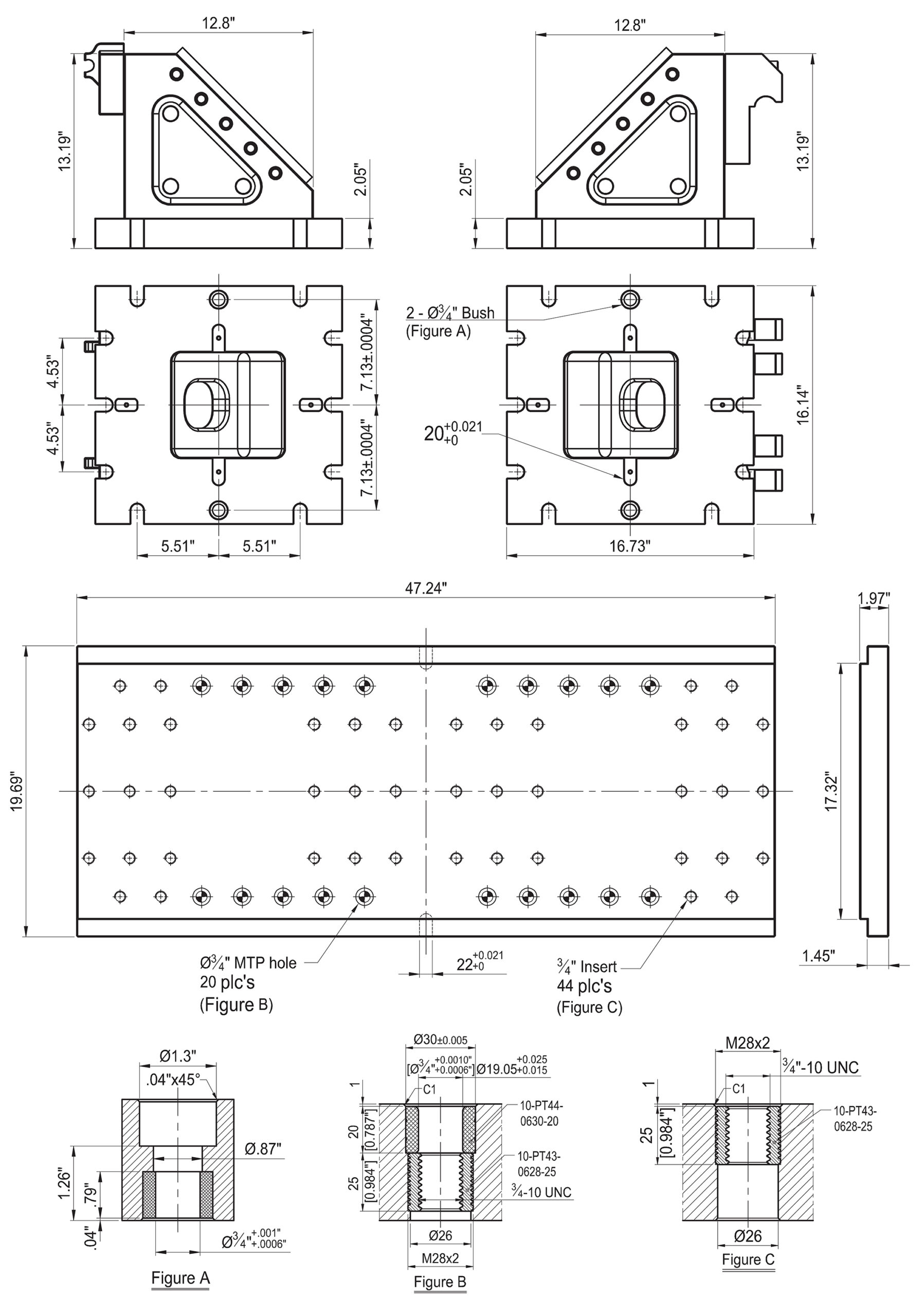

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.
| Max Diameter Held (in.) | 46.77 |
|---|---|
| Min. Diameter Held (in.) | 16.69 |
| Overall Height (in.) | 15.16 |
| Overall Length (in.) | 47.24 |
| Overall Width (in.) | 19.69 |
| Weight (lbs) | 1250 |
Description
Material/Finish
- FCD45 High-Strength Cast Iron, stress-relieved
- Hardened tool steel inserts in the "V"
Features
- Two-way alignment key ways for easy set up
- 16" x 47" x 2" base plate
- Two (2) Heavy 1.25” pitch chains included

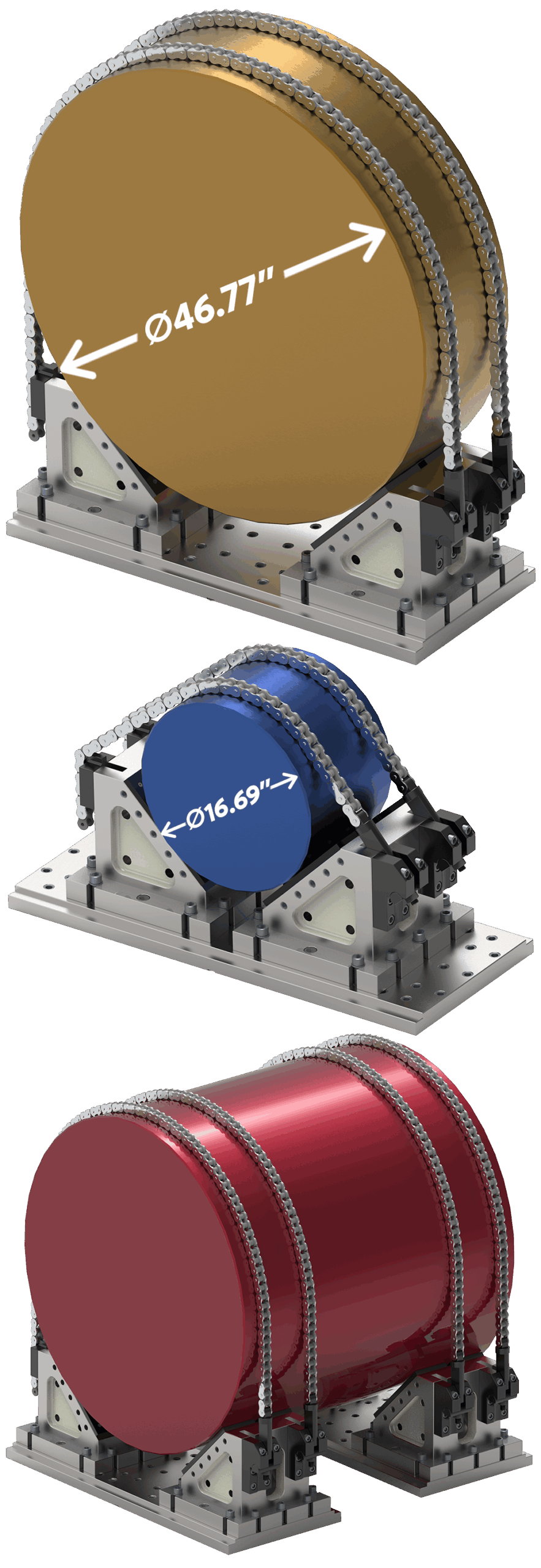

- Ø16.69" to Ø46.77" capacity
- Can be used without the base plate for larger parts
- Net weight: 1,250 lbs
