Specifications
Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.
| Max Diameter Held (in.) | 21.65 |
|---|---|
| Min. Diameter Held (in.) | 9.84 |
| Overall Height (in.) | 15.75 |
| Overall Length (in.) | 21.65 |
| Overall Width (in.) | 11.81 |
| Weight (lbs) | 698 |
Description
Material/Finish
- FCD60 High-Strength Cast Iron
- Hardened tool steel inserts in the "V"
Features
- Two-way alignment key ways for easy set up
- Two (2) Heavy 1-¼” pitch chains included

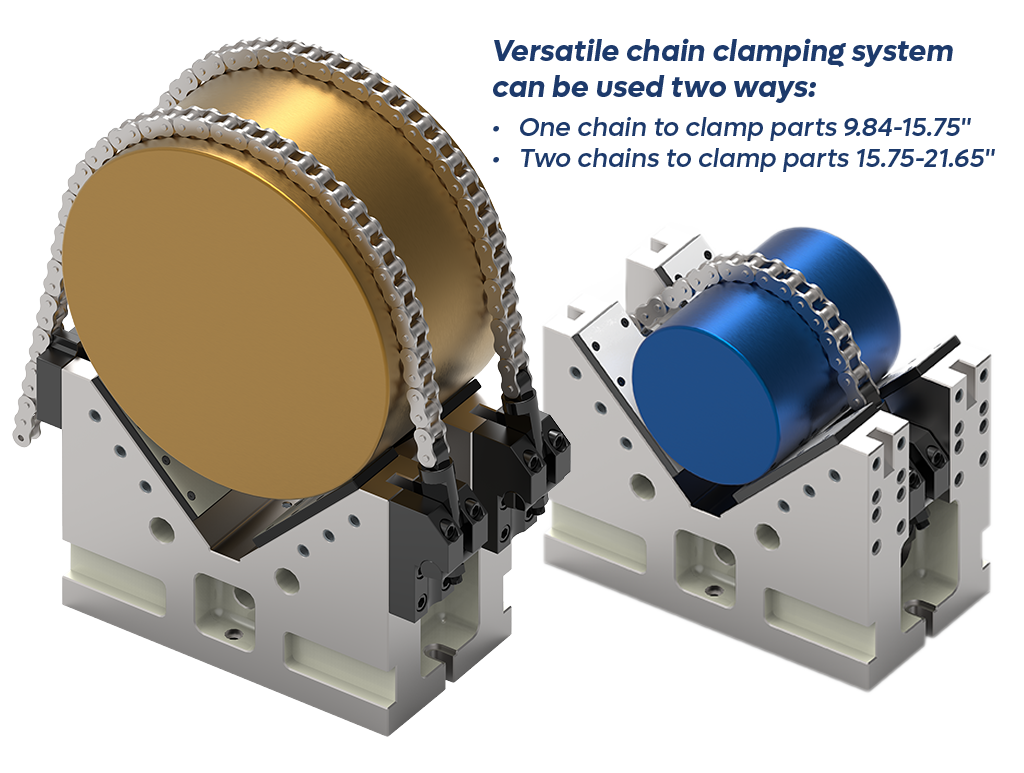

- Versatile chain clamping system for SUPER duty work
- One chain can be used to clamp parts 9.84-15.75"
- Two chains can be used to clamp parts 15.75-21.65"
- Plates in the "V" can be removed to increase part capacity to 23.6"
