Specifications
Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.
| A (in.) | 10.43 |
|---|---|
| B (in.) | 6.29 |
| C (in.) | 7.87 |
| D (in.) | 7.87 |
| E (in.) | 1.18 |
| F (in.) | 3.93 |
| G (in.) | 1.96 |
| H (in.) | 1.18 |
| Weight (lbs) | 121 |
| Overall Height (in.) | 7.87 |
| Overall Length (in.) | 10.43 |
| Overall Width (in.) | 6.29 |
| Max Diameter Held (in.) | 7.87 |
| Min. Diameter Held (in.) | 1.18 |
Description
Material/Finish
- FC30 Cast Iron - Normalized
- Hardened tool steel inserts in the "V"
Features
- Two-way alignment key ways for easy set up

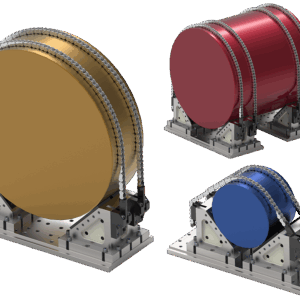

- Chain clamping system for heavy duty work (A1), Top clamps, studs & nuts included
