SVF-S06-chart

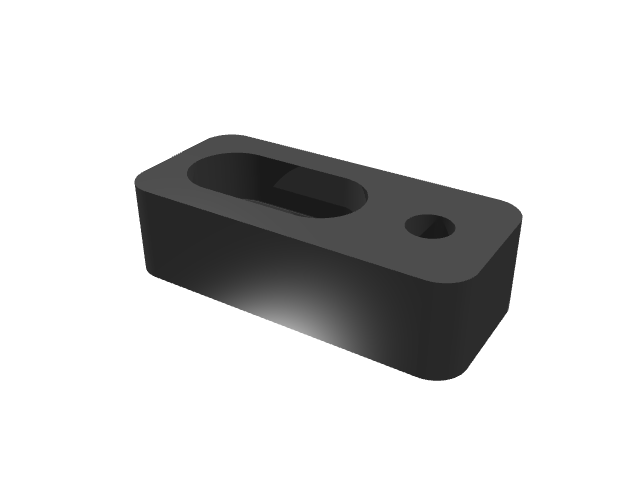

SVF-S06-100

For more information: Call us at 631-385-9452 or visit our contact page
Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

SVF-S06-chart
A (in.)

0.984

B (in.)

2.165

C (in.)

0.591

D (in.)

0.453

E (in.)

0.63

F (in.)

1.772

G (mm)

9

H (mm)

8.5

K (in.)

0.551

M

M8

R (mm)

5

Weight (lbs)

0.3

Description
