SVF-BE-chart

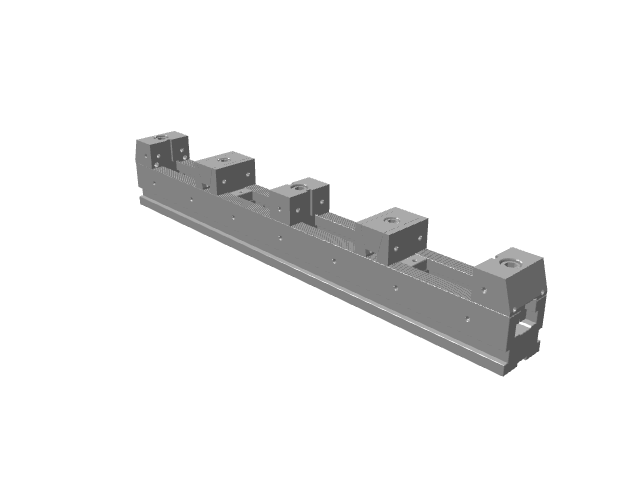

SVF-BE-7270-100

For more information: Call us at 631-385-9452 or visit our contact page
Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

SVF-BE-chart
Clamping Force (lbs)

4400

A (in.)

27.56

A (mm)

700

B (in.)

2.83

B (mm)

72

D (in.)

4

E (in.)

1.58

G (in.)

5/8"

H (in.)

4.41

I (in.)

1.56

J (in.)

2.83

P (in.)

20

Q (mm)

2

Q (in.)

0.08

R (in.)

5/8"

S (in.)

2.05

Weight (lbs)

66.2

Description

BE Series offers more parts held & larger size parts held compared to the “B” Series.

Features

  • Two way clamping with extra capacity!
  • High-Capacity
  • High-Flexibility
  • Easy to install
  • 100% Tool Steel
  • Dual Mounting system- Mount through bottom holes or toe clamp
  • Heat treated HRC 55° & ground
