3D model of a tall, dark gray triangular mounting bracket.

BP23-230100-0400

$795.00

For more information:
Call us at 631-385-9452 or visit our contact page
Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

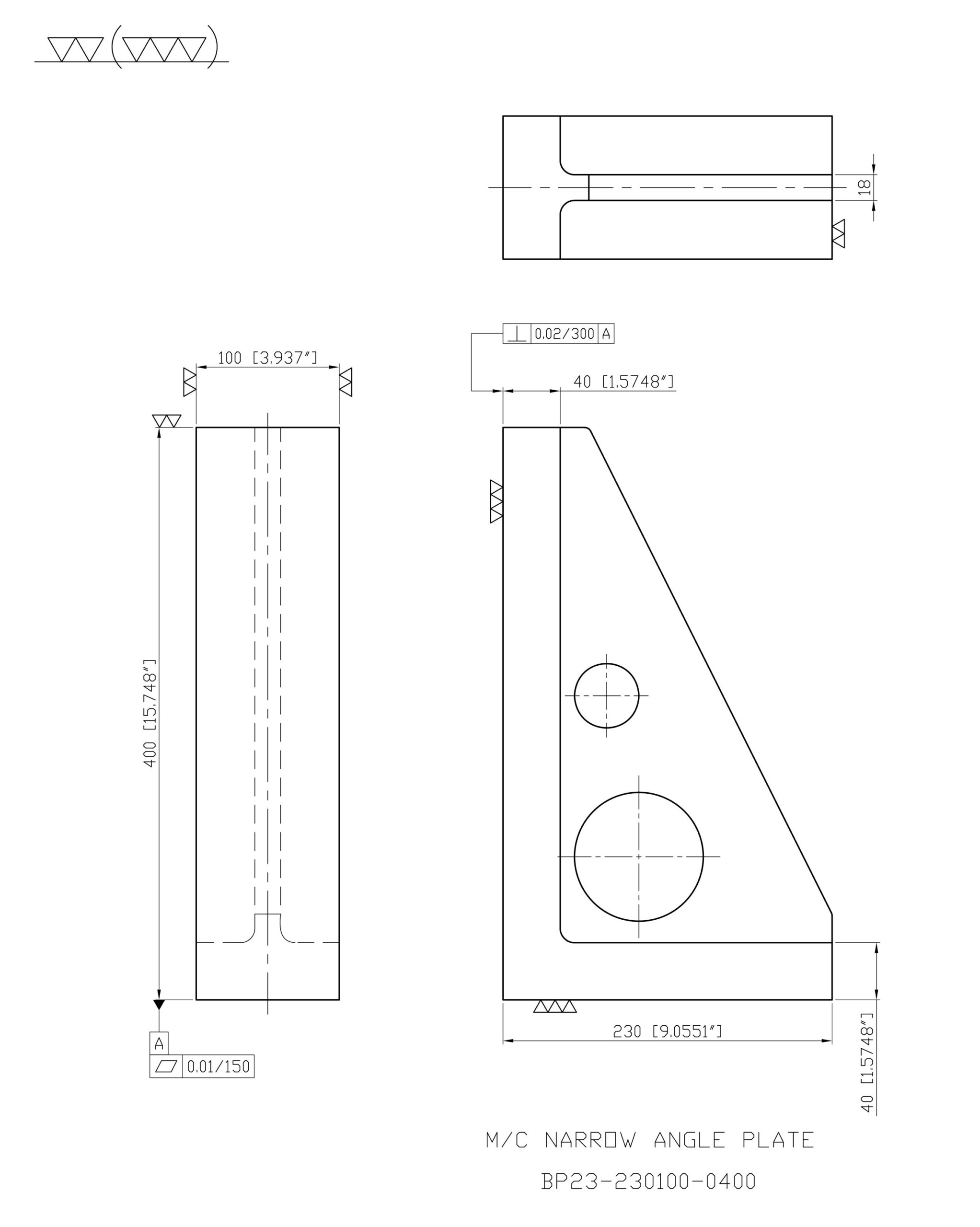

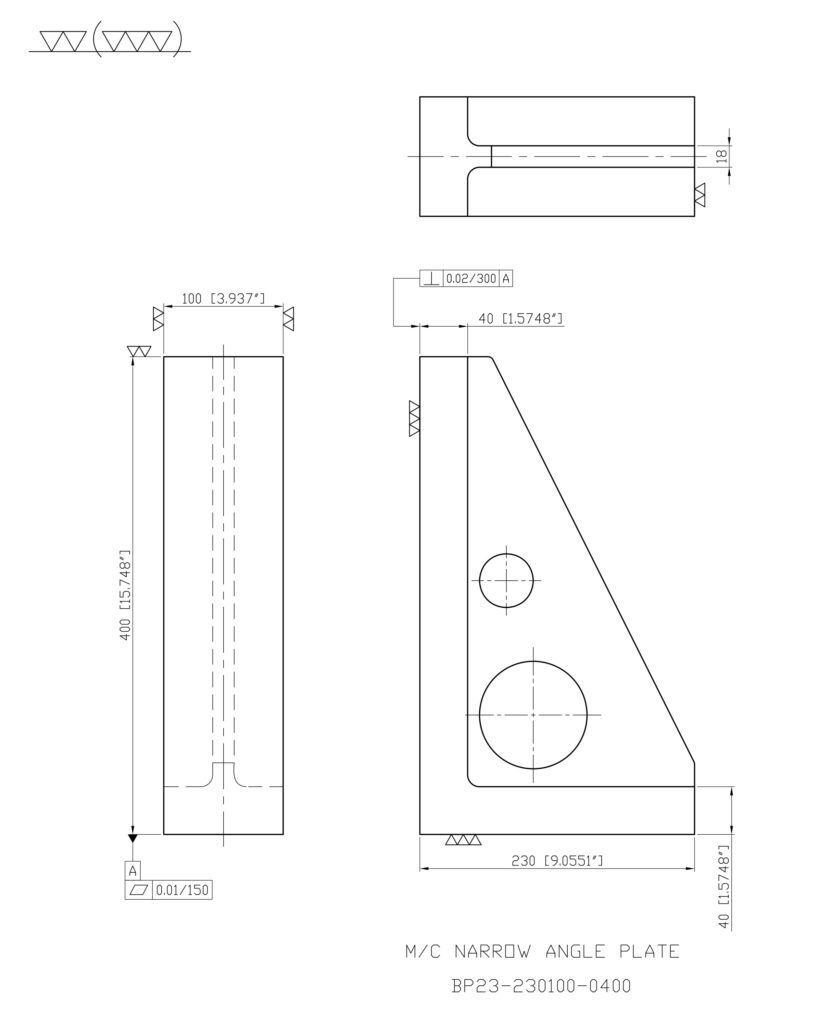

Technical drawing outlining dimensional views for a tall solid-face gusset bracket.
A (in.)

15.75

B (in.)

9.06

C (in.)

3.94

D (in.)

1.57

Weight (lbs)

44

Description

Material

FC300 series high strength Cast Iron – stress relieved

Accuracy

HMC/VMC

Features

  • Ready to accept a hole pattern for your special Jig Special design welcome
