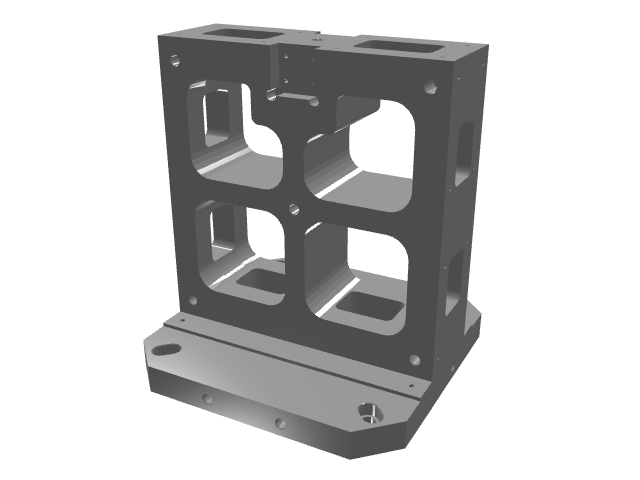

BP13-400400-0450

$2,915.00

For more information: Call us at 631-385-9452 or visit our contact page

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A (mm)

400

A (in.)

15.75

B (in.)

5.12

C (in.)

15.94

D (in.)

1.97

E (mm)

320

E1 (in.)

11.81

F (mm)

55

G (in.)

13.78

I (mm)

70

Mounting Holes

4

Weight (lbs)

267

Material

FC300 series high strength Cast Iron – stress relieved

Mounting Holes

Designed to fit all INCH & MM pallets (other configurations available)

Accuracy

Flat, parallel & square < .001″ over 12″

Features

  • Designed to accept QC Sub – Plate
  • Either Plain or Tapped & Bushed
  • 3 Point mounting system
  • Fast & Accurate
We can custom build any tombstone to fit your special needs. All Tombstones are designed to fit both in & MM Pallets.
