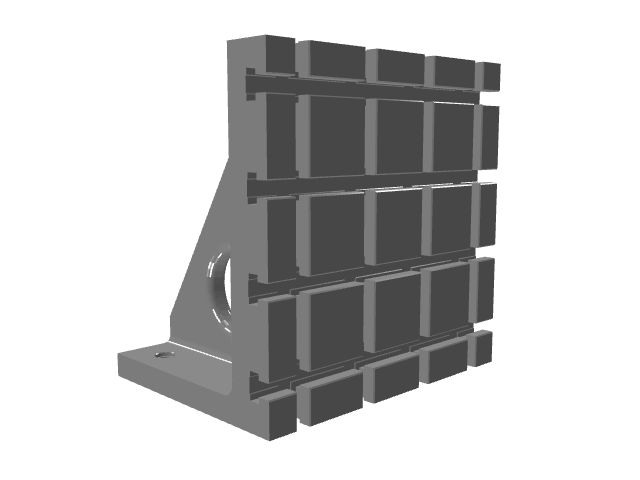

BP22-300400-0400-5

BP22-300400-0400-5

$2,195.00

For more information: Call us at 631-385-9452 or visit our contact page

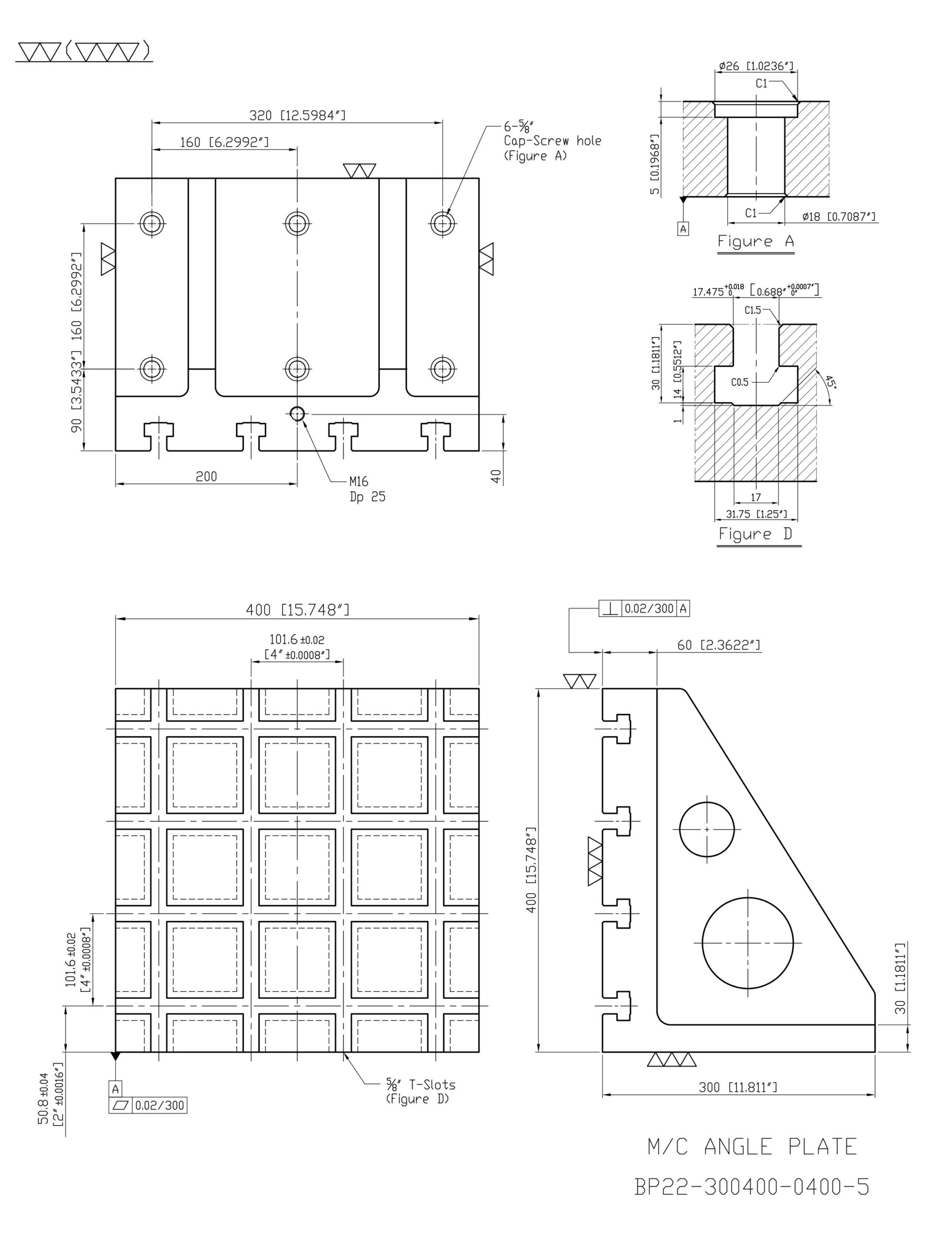

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

BP22-300400-0400-5
A (in.)

15.75

B (mm)

400

B (in.)

15.75

C (in.)

11.81

D (in.)

6.3

E (in.)

12.6

F (in.)

3.54

G (in.)

2.36

H (in.)

1.18

K (in.)

4

L (in.)

2

Weight (lbs)

212

Material

FC300 series high strength Cast Iron – stress relieved

Accuracy

Flat, parallel & square < .001″ over 12″

Features

  • 5/8″ T-Slots in both direction
  • Fully machined all sides
  • Lifting eyebolt
We can custom build any angle plate to fit your special needs.
