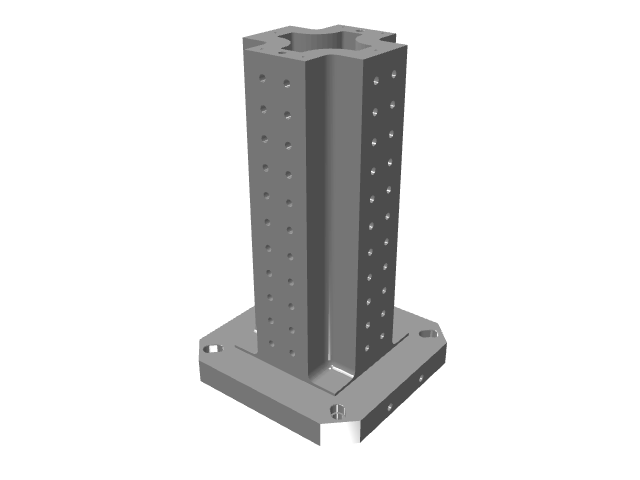

BP30-400400-0650-5

BP30-400400-0650-5

$4,385.00

For more information: Call us at 631-385-9452 or visit our contact page
Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

BP30-400400-0650-5
A (in.)

25.59

B (mm)

400

B (in.)

15.75

C (in.)

9.84

D (mm)

320

D1 (in.)

11.81

E (in.)

7.87

F (mm)

55

G (in.)

1.97

H (in.)

4.92

I (in.)

4

MTP Holes

88

Mounting Holes

4

Weight (lbs)

406

Description

Material

FC300 series high strength Cast Iron – stress relieved

Mounting Holes

Designed to fit all INCH & MM pallets (other configurations available)

Accuracy

Flat, parallel & square < .001″ over 12″

Hole Grid

  • Every hole has a 5/8″ drill bushing installed
  • Every hole has a 5/8″- 11 steel thread insert below the bushing
  • Grid location is marked on all sides
  • Holes are on a 2″ grid
  • Can be special ordered with any size and thread MTP hole

Features

  • Fully machined all sides
  • Top cover to keep out chips & coolant
  • Lifting eyebolt
We can custom build any tombstone to fit your special needs. All Tombstones are designed to fit both in & MM Pallets.
