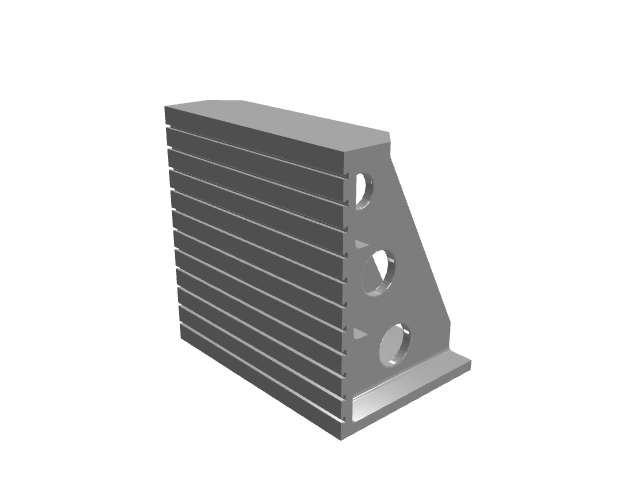

BP22-15001500-1066-6

Download 3D (.STP)

For more information: Call us at 631-385-9452 or visit our contact page

Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A (in.)	59.06
A (mm)	1500
B (in.)	59.06
B (mm)	1500
C (in.)	41.97
C (mm)	1066
D (in.)	n/a
E (in.)	n/a
F (in.)	n/a
G (in.)	n/a
K (in.)	5
Weight (lbs)	7531

Description

Material

FC300 series high strength Cast Iron – stress relieved

Accuracy

Flat, parallel & square < .001″ over 12″

Features

3/4″ T-Slots in horizontal direction, 5" spacing
Fully machined all sides
Lifting eyebolts

We can custom build any angle plate to fit your special needs.
