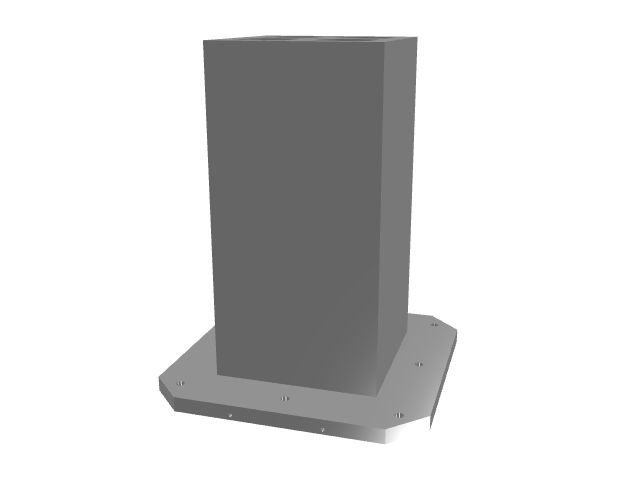

BP07-10001000-1250

Call for Pricing

For more information: Call us at 631-385-9452 or visit our contact page

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A (in.)

49.21

B (mm)

1000

B (in.)

39.37

C (in.)

23.62

D (mm)

n/a

D1 (in.)

n/a

E (in.)

19.69

F (mm)

n/a

G (in.)

2.17

Mounting Holes

8

Weight (lbs)

3290

Material

FC300 series high strength Cast Iron – stress relieved

Mounting Holes

Designed to fit all INCH & MM pallets (other configurations available)

Accuracy

Flat, parallel & square < .001″ over 12″

Features

  • Fully machined all sides
  • Side edge locating holes on base
  • Top cover to keep out chips & coolant
  • Lifting eyebolt
We can custom build any tombstone to fit your special needs. All Tombstones are designed to fit both in & MM Pallets.
