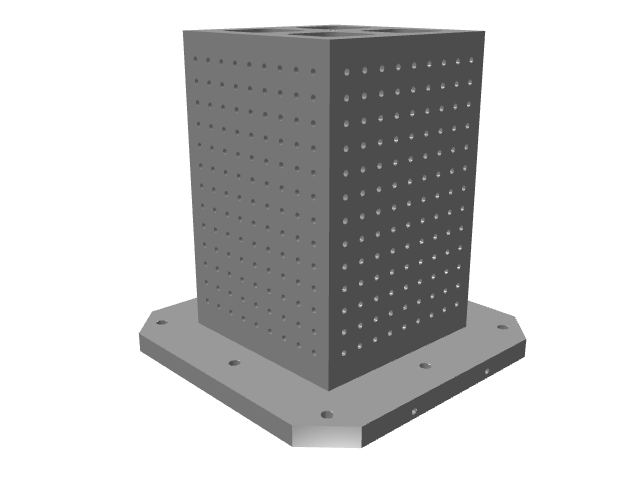

BP08-800800-0800-5
$11,210.00
For more information: Call us at 631-385-9452 or visit our contact page
Specifications
Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.
| A (in.) | 31.5 |
|---|---|
| B (mm) | 800 |
| B (in.) | 31.5 |
| C (in.) | 19.69 |
| D (mm) | 640 |
| D1 (in.) | 25 |
| E (in.) | 15.75 |
| F (mm) | 135 |
| G (in.) | 1.97 |
| I (in.) | 5 |
| MTP Holes | 468 |
| Mounting Holes | 8 |
| Weight (lbs) | 1389 |
Description
Material
FC300 series high strength Cast Iron – stress relievedMounting Holes
Designed to fit all INCH & MM pallets (other configurations available)Accuracy
Flat, parallel & square < .001″ over 12″Hole Grid
- Every hole has a 5/8″ drill bushing installed
- Every hole has a 5/8″- 11 steel thread insert below the bushing
- Grid location is marked on all sides
- Holes are on a 2″ grid
- Can be special ordered with any size MTP Hole
Features
- Fully machined all sides
- Side edge locating holes on base
- Top cover to keep out chips & coolant
- Lifting eyebolt
