Specifications
Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.
| Clamping Force (lbs) | 2200 |
|---|---|
| A (in.) | 19.69 |
| A (mm) | 500 |
| B (in.) | 1.97 |
| B (mm) | 50 |
| D (in.) | 4 |
| E (in.) | 1.18 |
| G (in.) | 1/2" |
| H (in.) | 2.95 |
| I (in.) | 0.98 |
| J (in.) | 1.97 |
| P (in.) | 12 |
| Q (mm) | 1.5 |
| Q (in.) | 0.06 |
| R (in.) | 1/2" |
| S (in.) | 1.42 |
| Weight (lbs) | 22.1 |
Description

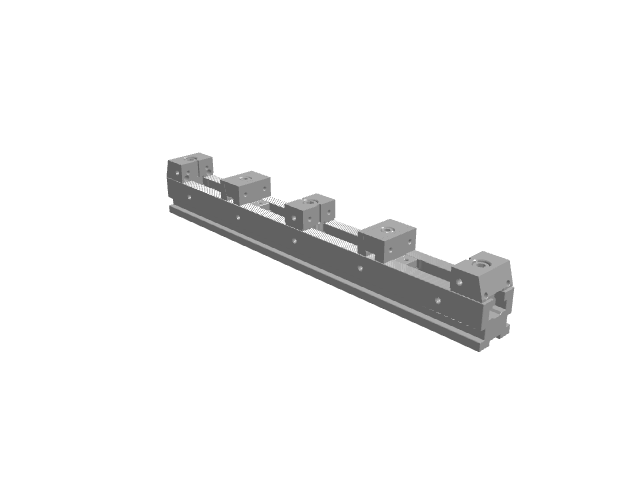

BE Series offers more parts held & larger size parts held compared to the “B” Series.
Features
- Two way clamping with extra capacity!
- High-Capacity
- High-Flexibility
- Easy to install
- 100% Tool Steel
- Dual Mounting system- Mount through bottom holes or toe clamp
- Heat treated HRC 55° & ground
