SVF-C-chart

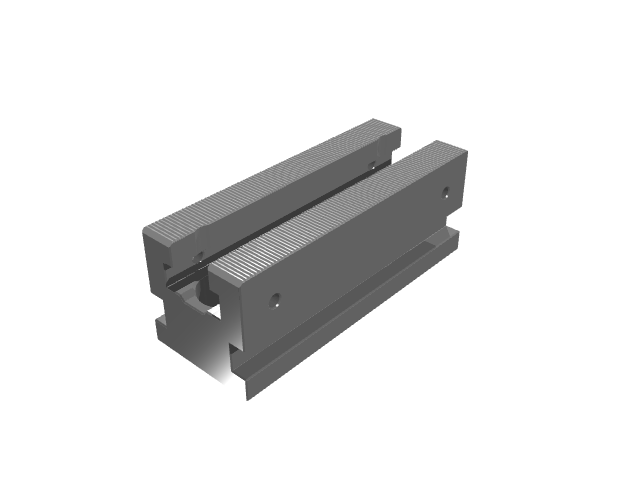

SVF-AB01-5013-100

For more information: Call us at 631-385-9452 or visit our contact page
Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

SVF-C-chart
Clamping Force (lbs)

2200

A (in.)

5.12

A (mm)

130

B (in.)

1.97

B (mm)

50

C (in.)

1.97

C (mm)

50

D (in.)

1/2"

Weight (lbs)

3.5

Description

Features

  • Modular Clamping
  • 100% Tool Steel
  • Heat treated HRC 55° & ground
  • Dual Mounting system: Mount through bottom holes or toe clamp
