SVF-A-chart

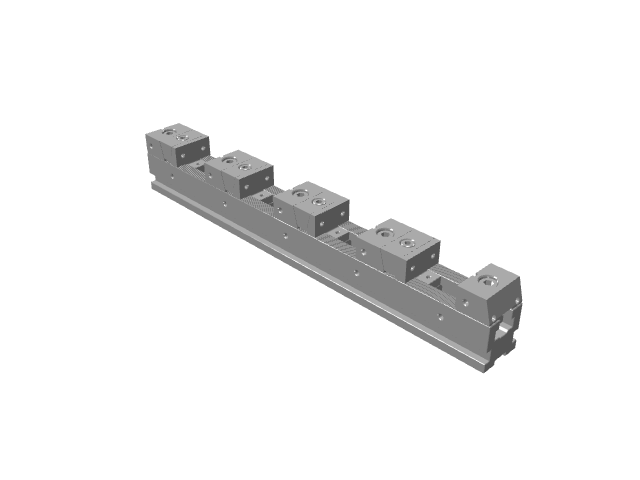

SVF-A-5050-100

For more information: Call us at 631-385-9452 or visit our contact page
Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

SVF-A-chart
Clamping Force (lbs)

2200

A (in.)

19.69

A (mm)

500

B (in.)

1.97

B (mm)

50

D (in.)

4

E (in.)

2.39

G (in.)

1/2

H (in.)

2.95

I (in.)

0.98

J (in.)

1.97

P (in.)

12

Q (mm)

1.5

R (in.)

1/2

Weight (lbs)

22.1

Description

Features

  • One way clamping
  • High-Capacity
  • High-Flexibility
  • Easy to install
  • 100% Tool Steel
  • Dual Mounting system- Mount through bottom holes or toe clamp
  • Heat treated HRC 55° & ground
