NewProduct

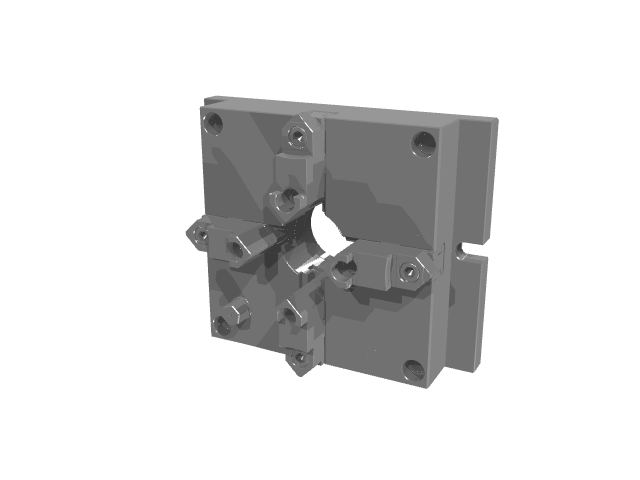

MCA-10

Call for Pricing

For more information: Call us at 631-385-9452 or visit our contact page

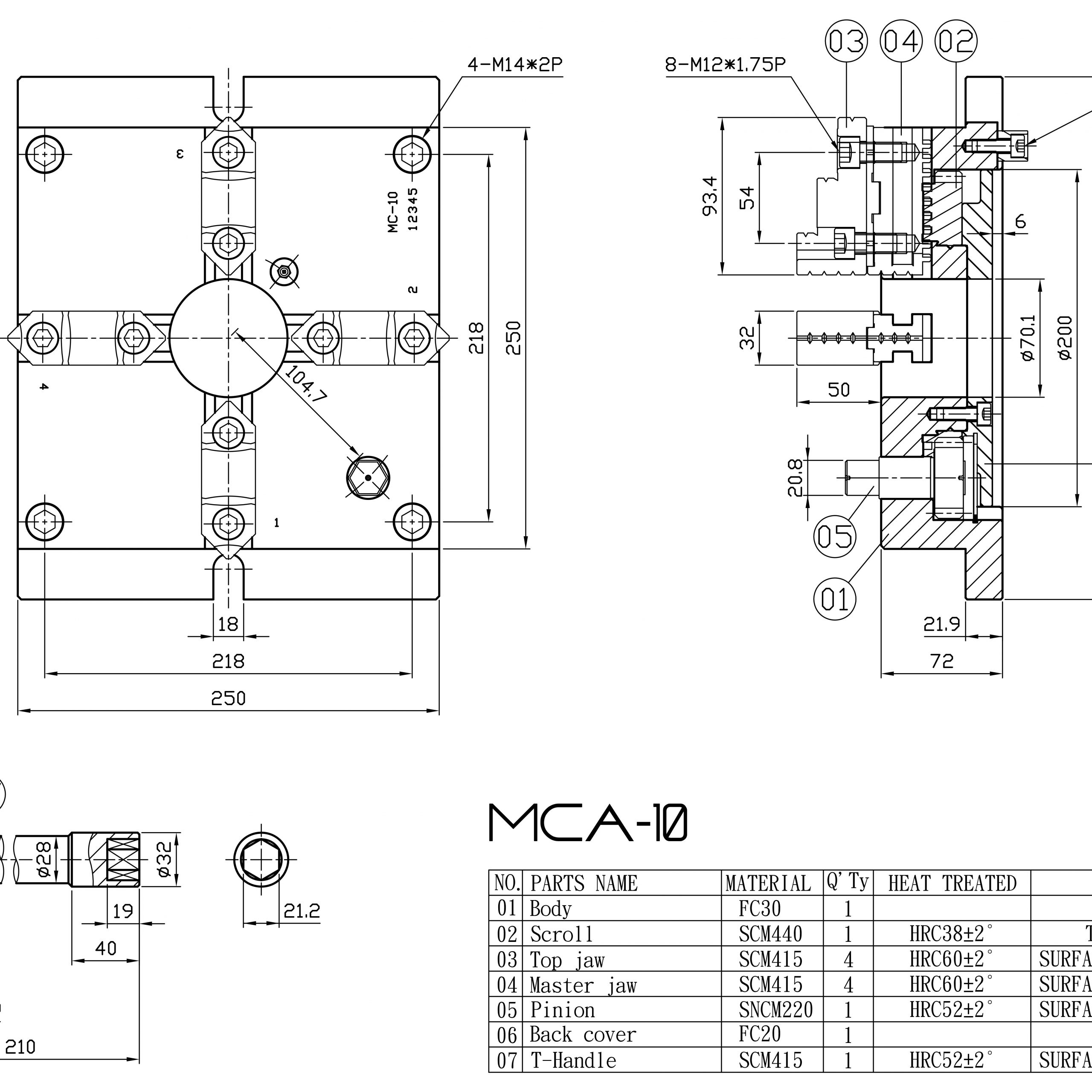

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A (in.)

12.20

B (in.)

2.83

C (in.)

0.87

E (in.)

2.76

K (in.)

1.97

M (in.)

8.58

N (in.)

9.84

P (in.)

8.58

Q (in.)

9.84

S (in.)

0.71

Max Diameter Held External (in.)

⌀.24-⌀7.87

Max Diameter Held Internal (in.)

⌀2.83-⌀7.87

Weight (lbs)

69.67

Features

  • Front placement of the chuck wrench makes for easy operation
  • MCA chucks are precisely ground
  • "SUPER THIN" design
  • Can be used with Hard or Soft jaws
  • Alignment key on bottom of chuck for easy orientation
  • Flange design makes for easy loading
  • Comes with reversible hard jaws as standard
