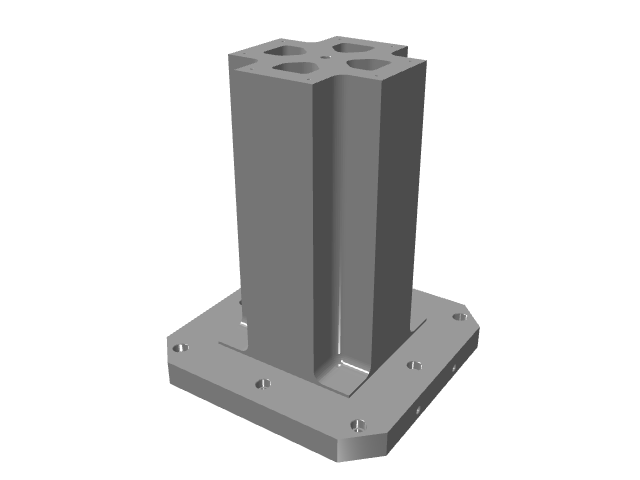

BP29-500500-0600

$3,675.00

For more information: Call us at 631-385-9452 or visit our contact page

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A (in.)

23.62

B (mm)

500

B (in.)

19.69

C (in.)

11.81

D (mm)

400

D1 (in.)

16

E (in.)

9.84

F (mm)

75

G (in.)

1.97

H (in.)

5.91

Mounting Holes

8

Weight (lbs)

600

Material

FC300 series high strength Cast Iron – stress relieved

Mounting Holes

Designed to fit all INCH & MM pallets (other configurations available)

Accuracy

  • Horizontal Machining Center
  • Flat, parallel & square < .001″ over 12″

Features

  • Ready to accept a hole pattern for your special jig
  • Eye bolt & Top cover included
We can custom build any tombstone to fit your special needs. All Tombstones are designed to fit both in & MM Pallets.
