Specifications

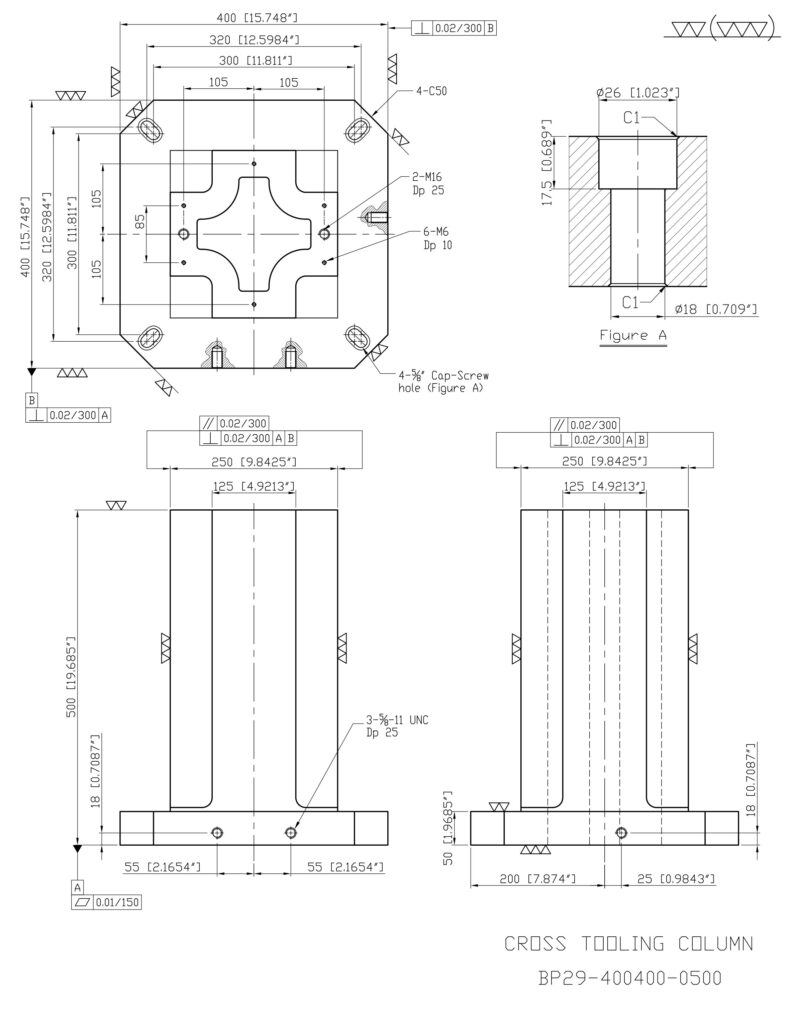

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.
| A (in.) | 19.69 |
|---|---|
| B (mm) | 400 |
| B (in.) | 15.75 |
| C (in.) | 9.84 |
| D (mm) | 320 |
| D1 (in.) | 11.81 |
| E (in.) | 7.87 |
| F (mm) | 55 |
| G (in.) | 1.97 |
| H (in.) | 4.92 |
| Mounting Holes | 4 |
| Weight (lbs) | 340 |
Description
Material
FC300 series high strength Cast Iron – stress relievedMounting Holes
Designed to fit all INCH & MM pallets (other configurations available)Accuracy
- Horizontal Machining Center
- Flat, parallel & square < .001″ over 12″
