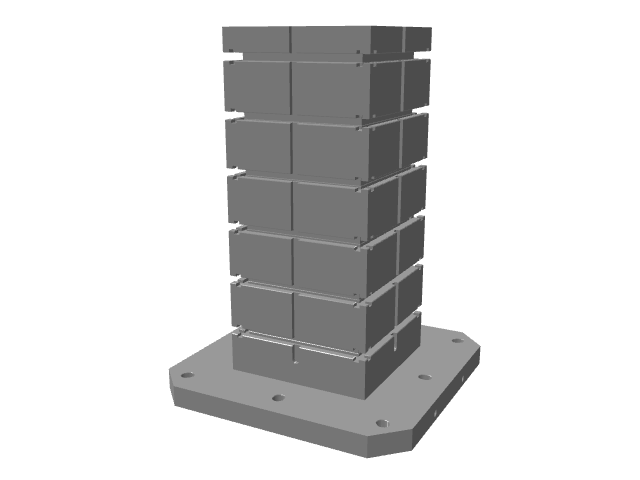

BP09-630630-0850-5

$8,700.00

For more information: Call us at 631-385-9452 or visit our contact page

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A (in.)

33.47

B (mm)

630

B (in.)

24.8

C (in.)

13.78

D (mm)

500

D1 (in.)

20

E (in.)

12.4

F (mm)

100

G (in.)

1.97

H (in.)

5

Mounting Holes

8

Weight (lbs)

1114

Material

FC300 series high strength Cast Iron – stress relieved

Mounting Holes

Designed to fit all INCH & MM pallets (other configurations available)

Accuracy

Flat, parallel & square < .001″ over 12″

Features

  • 5/8″ T-Slots on all sides
  • Fully machined all sides
  • Top cover to keep out chips & coolant
  • Lifting eyebolt
We can custom build any tombstone to fit your special needs. All Tombstones are designed to fit both in & MM Pallets.
