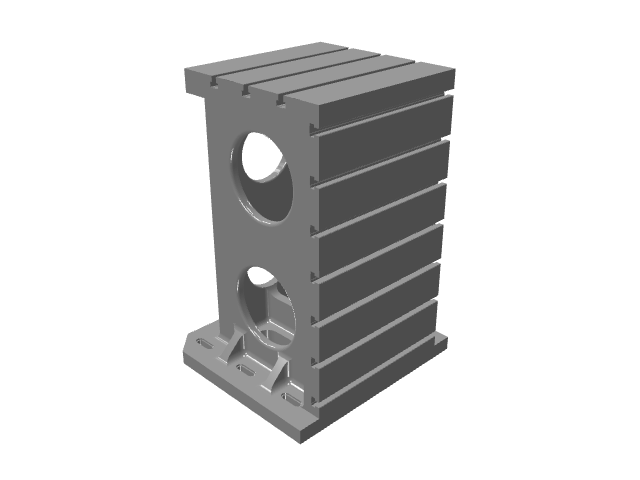

BP22S-B0900

Download 2D (.PDF)

Download 3D (.STP)

For more information: Call us at 631-385-9452 or visit our contact page

Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

BP22S-B-chart

A (in.)	35.43
B (in.)	24.8
C (in.)	24.8
M (in.)	19.69
N (in.)	19.69

Description

Material

Cast Iron FC300(JIS) / Class 45 Equivalent
Heat treated (Normalized)

Features

T-Slots running one direction, easily adapts to standardized jig components.
Special design welcome.
