BP31-500500-0750

BP31-500500-0750

$4,705.00

For more information: Call us at 631-385-9452 or visit our contact page

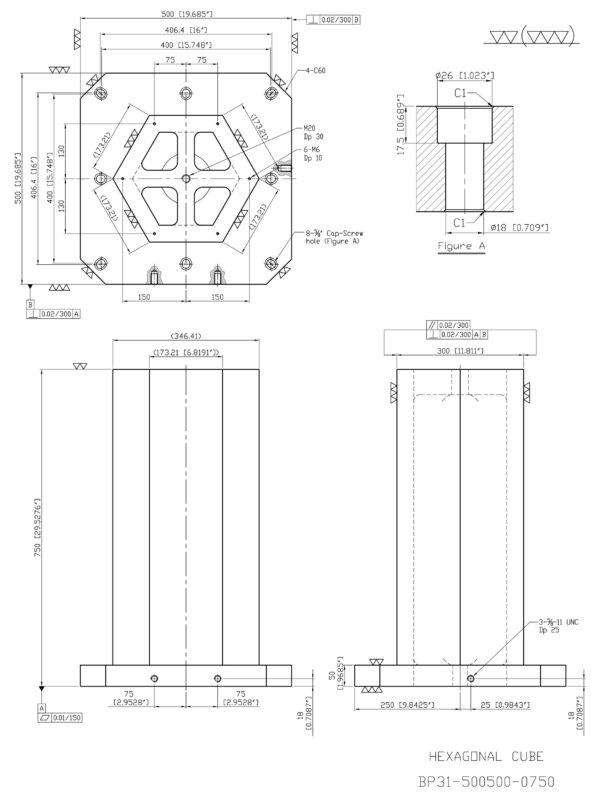

Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

BP31-500500-0750
A (in.)

29.53

B (mm)

500

B (in.)

19.69

C (in.)

11.81

D (mm)

400

D1 (in.)

16

E (in.)

9.84

F (mm)

75

G (in.)

1.97

H (in.)

6.82

Mounting Holes

8

Weight (lbs)

600

Description

Material

FC300 series high strength Cast Iron – stress relieved

Mounting Holes

Designed to fit all INCH & MM pallets (other configurations available)

Accuracy

Flat, parallel & square < .001″ over 12″

Features

  • Ready to accept a hole pattern for your special needs
  • Eye bolt & Top cover included
We can custom build any tombstone to fit your special needs. All Tombstones are designed to fit both in & MM Pallets.
