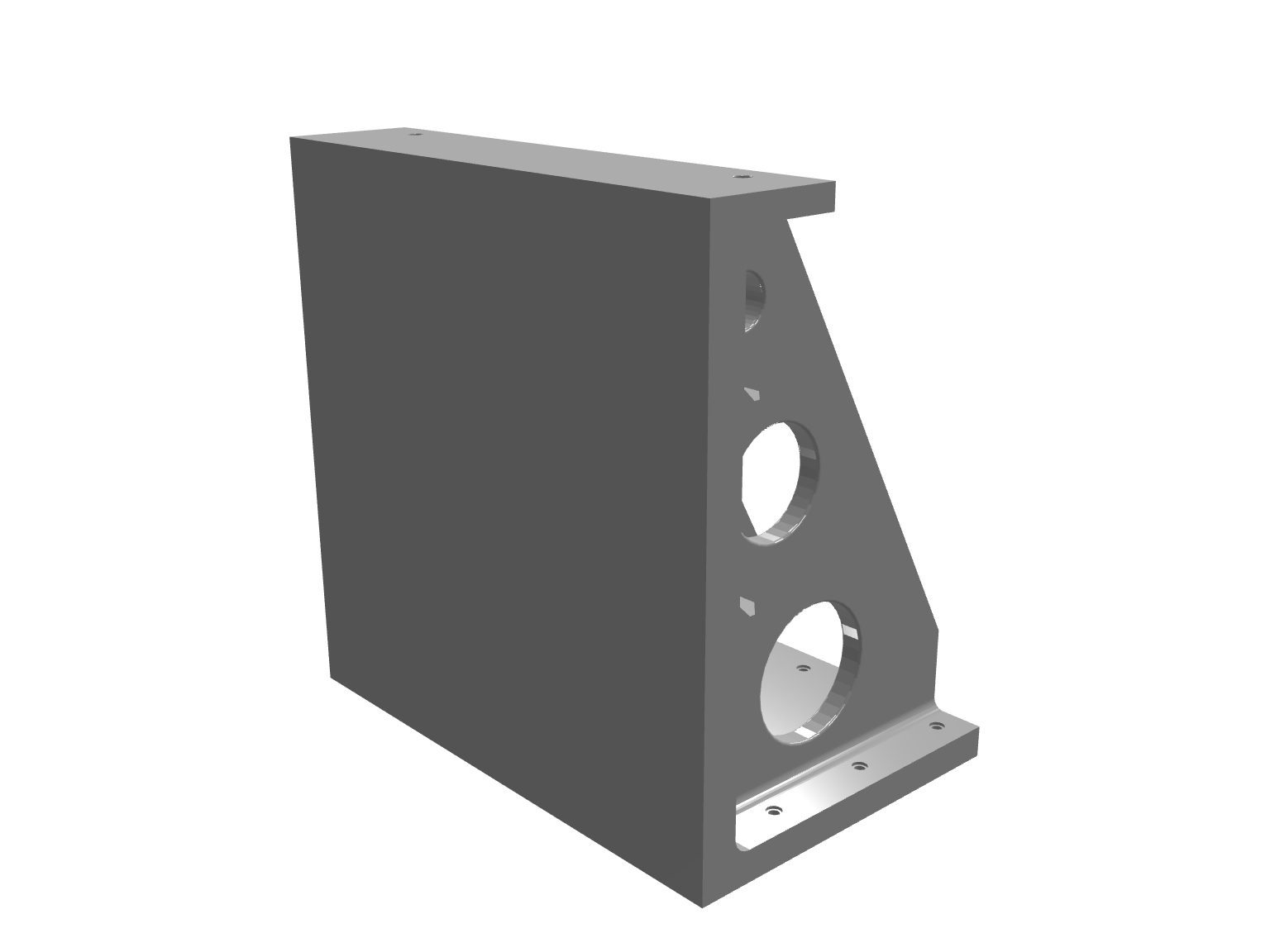

BP20-6501000-1000

Call for Pricing

For more information: Call us at 631-385-9452 or visit our contact page

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A (in.)

39.37

B (mm)

1000

B (in.)

39.37

C (in.)

25.59

D (in.)

12.6

E (in.)

25.2

F (in.)

4.53

G (in.)

2.56

H (in.)

2.17

Weight (lbs)

2510

Material

FC300 series high strength Cast Iron – stress relieved

Mounting Holes

Six (6) Counter Bored holes for 5/8″ bolts

Accuracy

Flat, parallel & square < .001″ over 12″

Features

  • Fully machined all sides
  • (2) Heavy ribs
  • Lifting eyebolt
We can custom build any angle plate to fit your special needs.
