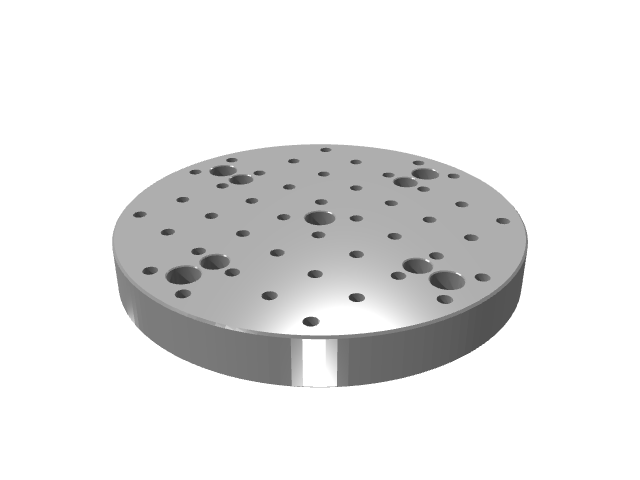

Specifications
Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.
| B (in.) | 1/2" |
|---|---|
| C (mm) | 400 |
| C (in.) | 15.75 |
| D (in.) | 10 |
| E (in.) | 12.6 |
| MTP Holes | 44 |
| Weight (lbs) | 93 |
Description
Material/Finish
Cast Iron FC300(JIS) / GG30(DIN) Heat treated (Normalized)Alignment Bushing
SUJ2(JIS) / 100Cr6(DIN), heat treatedThread Insert
S45C(JIS) / CK45(DIN), heat treatedMTP hole spacing
2″ ±0.0008″Application
NC Rotary Table or IndexerFeatures
Alignment bushing & thread insert at every hole location, easily adapts to standardized jig componentsWe can custom build any SUB PLATE to fit your special needs
— Up to 80″ x 160″
ALL SUB PLATES ARE DESIGNED TO FIT BOTH IN & MM PALLETS
