Specifications
Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.
| A (mm) | 630 |
|---|---|
| A (in.) | 24.8 |
| B (mm) | 630 |
| B (in.) | 24.8 |
| C (in.) | 1.57 |
| D (in.) | 22.83 |
| E (in.) | 22.83 |
| F (in.) | 23.62 |
| MTP Holes | 138 |
| Weight (lbs) | 232 |
Description
Material/Finish
- Cast Iron FC300(JIS) / GG30(DIN)
- Heat treated (Normalized)
- Alignment Bushing: SUJ2(JIS) / 100Cr6 (DIN), heat treated
- Threaded Insert: S45C(JIS) / CK45(DIN), heat treated
- MTP hole spacing: 2″ ±0.0008″
Application & Features

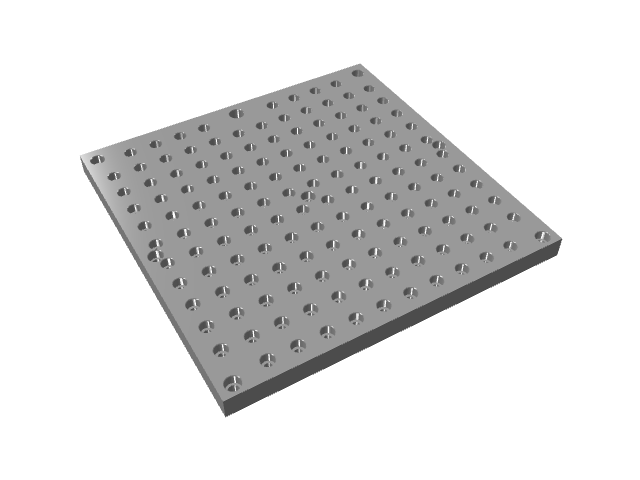

- Modular quick change subplate for use with our BP13- T Modular tombstone
- Alignment bushing & thread insert at every hole location, easily adapts to standardized jig components
- Special design welcome
