Specifications
Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.
| A (in.) | 1.97 |
|---|---|
| B (mm) | 800 |
| B (in.) | 31.5 |
| C (mm) | 630 |
| C1 (in.) | 25 |
| D (mm) | 135 |
| Mounting Holes | 8 |
| Weight (lbs) | 496 |

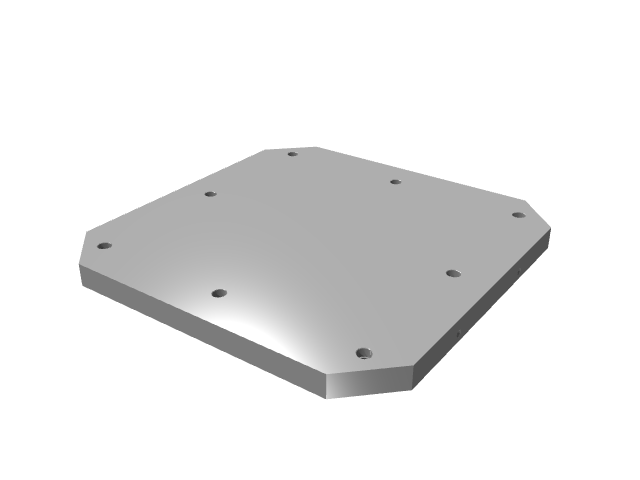

Description
Material
FC300 series high strength cast iron – stress relievedAccuracy
Flat, parallel & square < .001″ over 12″We can custom build any SUB PLATE to fit your special needs
— Up to 80″ x 160″
ALL SUB PLATES ARE DESIGNED TO FIT BOTH IN & MM PALLETS
