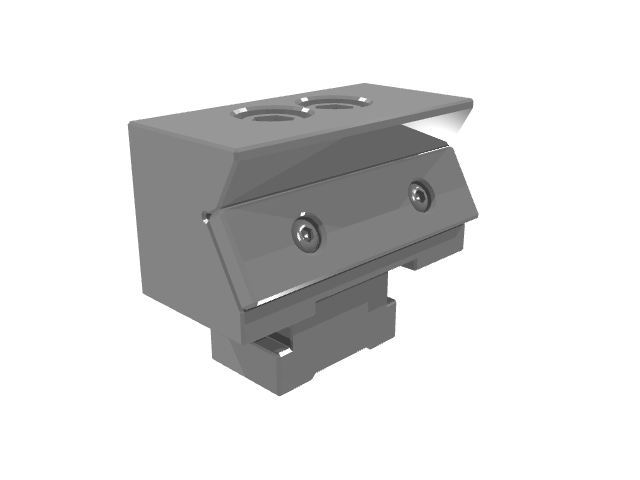

Grey 3D render of a modular clamping mechanism with an angled jaw assembly and twin top openings.

SVF-S03A-100

For more information:
Call us at 631-385-9452 or visit our contact page
Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

Technical engineering blueprint detailing setup angles and spacer components for a specialized clamp.
A (in.)

3.94

B (in.)

1.97

C (in.)

2.24

D (in.)

1

E (in.)

2.28

Weight (lbs)

5
