SVF-CB-chartSVF-CB-2

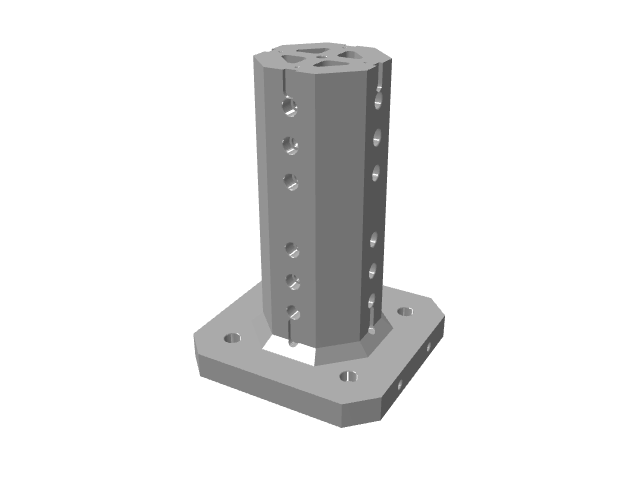

SVF-7240-320CB8-100

For more information: Call us at 631-385-9452 or visit our contact page
Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

SVF-CB-chart
A (in.)

12.6

A (mm)

320

B (in.)

6.69

C (in.)

2.95

D (mm)

200

D1 (in.)

n/a

E (in.)

2.05

F (in.)

3.94

G/I (in.)

5/8"

H (in.)

18.11

N (in.)

4.02

P (in.)

7.87

Mounting Holes

4

Weight (lbs)

174.2

Description

Features

  • Modular Clamping
  • 100% Tool Steel
  • Heat treated HRC 55° & ground
  • Dual Mounting system: Mount through bottom holes or toe clamp
