NewProduct

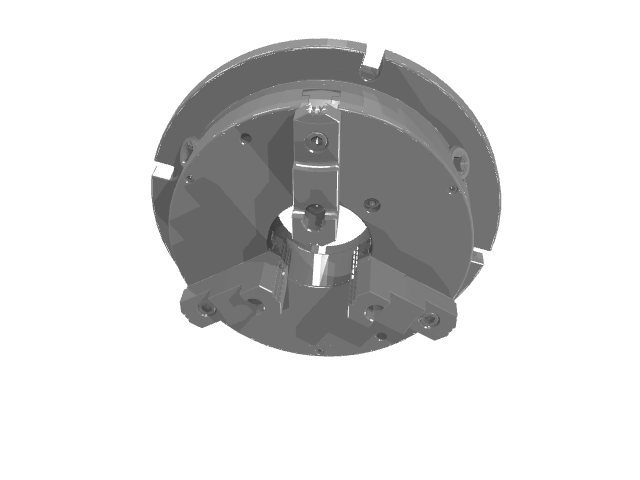

NBK-12

Call for Pricing

For more information: Call us at 631-385-9452 or visit our contact page

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A1 (in.)

14.57

A2 (in.)

12.01

B1 (in.)

3.15

B2 (in.)

0.87

E (in.)

4.13

F (mm)

5

G (mm)

3-M12

H (mm)

118

J (mm)

40

K (mm)

59

K (in.)

2.32

L (mm)

14

M (in.)

0.71

M (mm)

18

Max Diameter Held External (in.)

⌀.59-⌀11.81

Max Diameter Held Internal (in.)

⌀3.39-⌀11.42

Weight (lbs)

94.58

Features

  • The angle of the chuck wrench is set at 30 degrees for easy operation.
  • NBK chucks are precisely ground
  • "SUPER THIN" design
  • Can be used with Hard or Soft jaws.
  • Flange design makes for easy loading.
  • Comes with reversible hard jaws as standard.
