Specifications
Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.
| A (in.) | 39.37 |
|---|---|
| B (mm) | 800 |
| B (in.) | 31.5 |
| C (in.) | 19.69 |
| D (mm) | 640 |
| D1 (in.) | 25 |
| E (in.) | 15.75 |
| F (mm) | 135 |
| G (in.) | 1.97 |
| H (in.) | 11.81 |
| Mounting Holes | 8 |
| Weight (lbs) | 1660 |

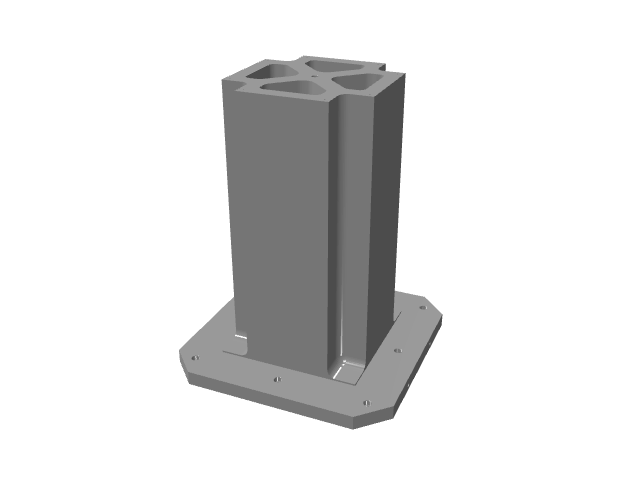

Description
Material
FC300 series high strength Cast Iron – stress relievedMounting Holes
Designed to fit all INCH & MM pallets (other configurations available)Accuracy
- Horizontal Machining Center
- Flat, parallel & square < .001″ over 12″
