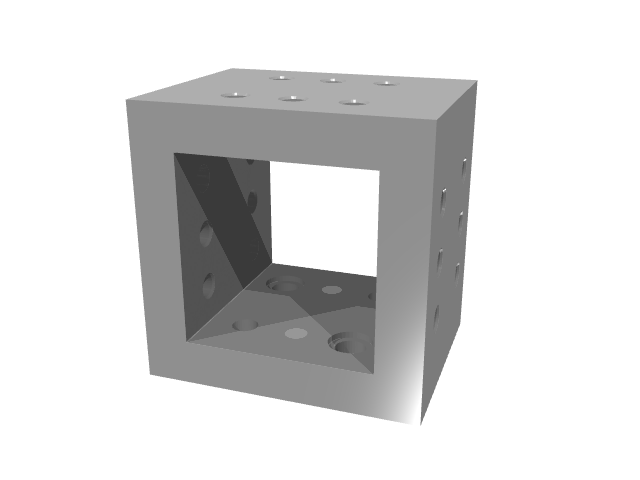

3D render of a hollow, open-sided square window tooling column block.

BP28-125098-125-4

For more information:
Call us at 631-385-9452 or visit our contact page
Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

Full engineering blueprint schematic detailing multi-angle mechanical dimensions.
A (in.)

1/2-13UNC

B (in.)

1/2-13UNC

C (in.)

1/2"

Weight (lbs)

13

Description

Material

Cast Iron FC300 (JIS) / Class 45 Equivalent Heat Treated (Normalized)

Features

Alignment bushing & thread insert at every hole location, easily adapts to standardized jig components.
We can custom build any cast section to fit your special needs.
