BP15-40400-0400-5

Call for Pricing

For more information: Call us at 631-385-9452 or visit our contact page

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A (mm)

400

A (in.)

15.75

B (mm)

400

B (in.)

15.75

C (in.)

1.57

D (in.)

13.78

E (in.)

13.78

F (in.)

14.57

MTP Holes

58

Weight (lbs)

82

Material/Finish

  • Cast Iron FC300(JIS) / GG30(DIN)
  • Heat treated (Normalized)
  • Alignment Bushing: SUJ2(JIS) / 100Cr6 (DIN), heat treated
  • Threaded Insert: S45C(JIS) / CK45(DIN), heat treated
  • MTP hole spacing: 2″ ±0.0008″

Application & Features

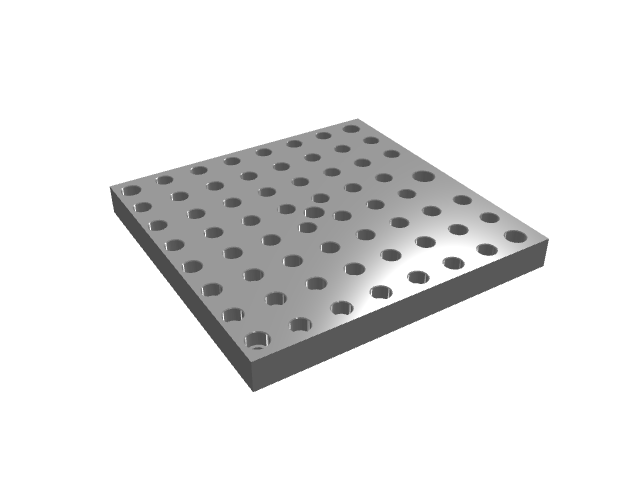

  • Modular quick change subplate for use with our BP13- T Modular tombstone
  • Alignment bushing & thread insert at every hole location, easily adapts to standardized jig components
  • Special design welcome
