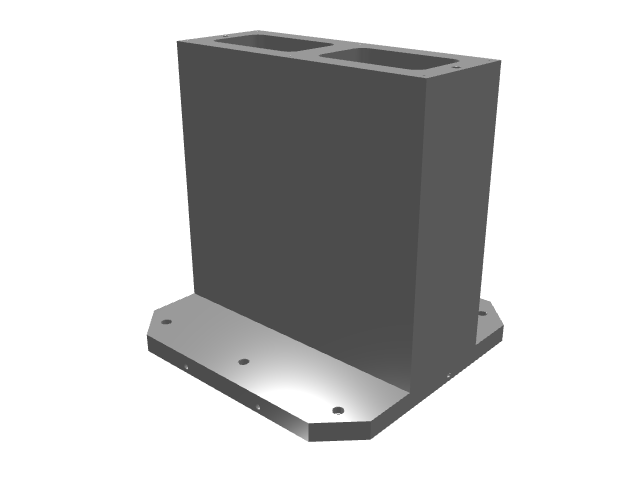

BP10-800800-0800

$6,460.00

For more information: Call us at 631-385-9452 or visit our contact page

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A (in.)

31.5

B (mm)

800

B (in.)

31.5

C (in.)

11.81

D (mm)

640

D1 (in.)

25

E (in.)

15.75

F (mm)

135

G (in.)

1.97

H (in.)

31.5

Mounting Holes

6

Weight (lbs)

1544

Material

FC300 series high strength Cast Iron – stress relieved

Mounting Holes

Designed to fit all INCH & MM pallets (other configurations available)

Accuracy

Flat, parallel & square < .001″ over 12″

Features

  • Fully machined all sides
  • Side edge locating holes on base
  • Top cover to keep out chips & coolant
  • Lifting eyebolt
We can custom build any tombstone to fit your special needs. All Tombstones are designed to fit both in & MM Pallets.
