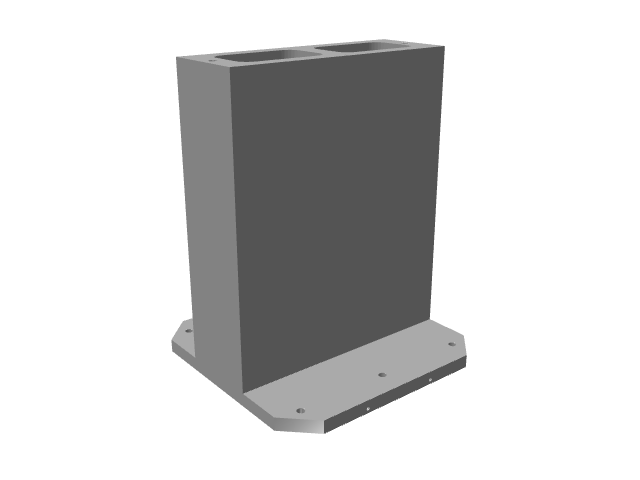

BP10-10001000-1250

Download 2D (.PDF)

Download 3D (.STP)

For more information: Call us at 631-385-9452 or visit our contact page

Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A (in.)	49.213
B (mm)	1000
B (in.)	39.37
C (in.)	13.78
D (mm)	As Required
D1 (in.)	As Required
E (in.)	As Required
F (mm)	As Required
G (in.)	2.165
H (in.)	39.37
Mounting Holes	6
Weight (lbs)	3036

Description

Material

FC300 series high strength Cast Iron – stress relieved

Mounting Holes

Designed to fit all INCH & MM pallets (other configurations available)

Accuracy

Flat, parallel & square < .001″ over 12″

Features

Fully machined all sides
Side edge locating holes on base
Top cover to keep out chips & coolant
Lifting eyebolt

We can custom build any tombstone to fit your special needs. All Tombstones are designed to fit both in & MM Pallets.
