Specifications
Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.
| A (in.) | 2.95 |
|---|---|
| B (mm) | 630 |
| B (in.) | 24.8 |
| C (mm) | 500 |
| C1 (in.) | 20 |
| E (mm) | 100 |
| H (in.) | 5 |
| Mounting Holes | 8 |
| Weight (lbs) | 397 |
Description
Material
FC300 series high strength cast iron – stress relievedAccuracy
Flat, parallel & square < .001″ over 12″T-Slots

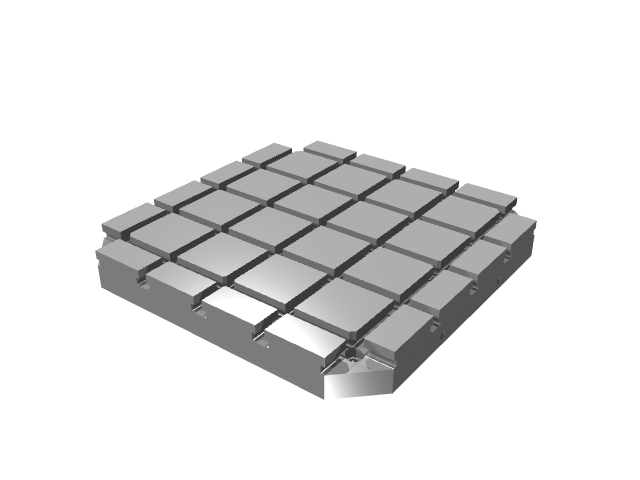

5/8″ in both directions We can custom build any Sub Plate to fit your special needs — Up to 80″ x 160″- ALL SUB PLATES ARE DESIGNED TO FIT BOTH IN & MM PALLETS
