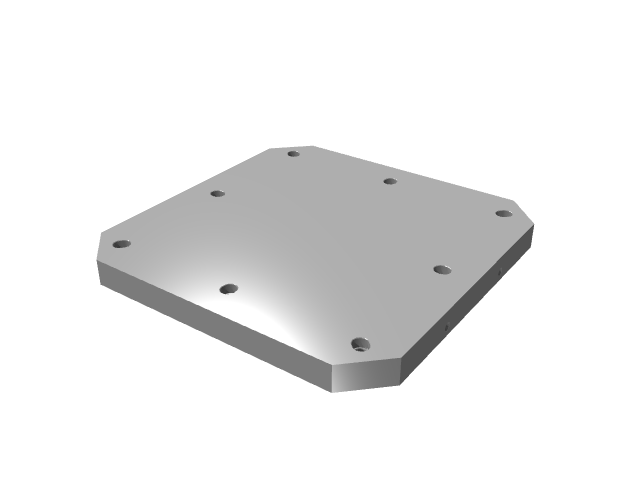

BP04-50630-0630

$2,345.00

For more information: Call us at 631-385-9452 or visit our contact page

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

A (in.)

1.97

B (mm)

630

B (in.)

24.8

C (mm)

500

C1 (in.)

20

D (mm)

100

Mounting Holes

8

Weight (lbs)

309

Material

FC300 series high strength cast iron – stress relieved

Accuracy

Flat, parallel & square < .001″ over 12″
We can custom build any SUB PLATE to fit your special needs — Up to 80″ x 160″
ALL SUB PLATES ARE DESIGNED TO FIT BOTH IN & MM PALLETS
