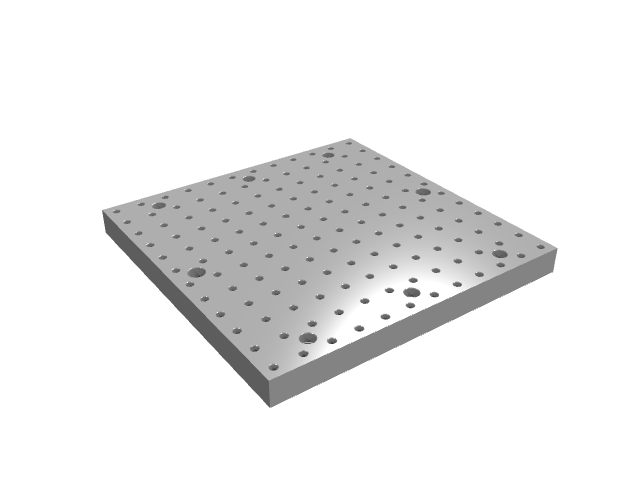

BP02-50600-0600-5

BP02-50600-0600-5

$3,735.00

For more information: Call us at 631-385-9452 or visit our contact page
Specifications

Please note: Some specifications below are rounded, please refer to PDF/CAD files for exact dimensions.

BP02-50600-0600-5
A (in.)

23.62

B (in.)

23.62

C (in.)

20

E (in.)

As Required

F (in.)

As Required

MTP Holes

144

Weight (lbs)

265

Description

Material

FC300 series high strength cast iron – stress relieved

Accuracy

Flat, parallel & square < .001″ over 12″

Hole Grid

  • Every hole has a 5/8″ drill bushing
  • Every hole has a 5/8″- 11 steel thread insert
  • Grid location is marked on face
  • Holes are on a 2″ grid
  • Can be special ordered with any size MTP Hole
We can custom build any SUB PLATE to fit your special needs. 1/2″ & MM holes available.
